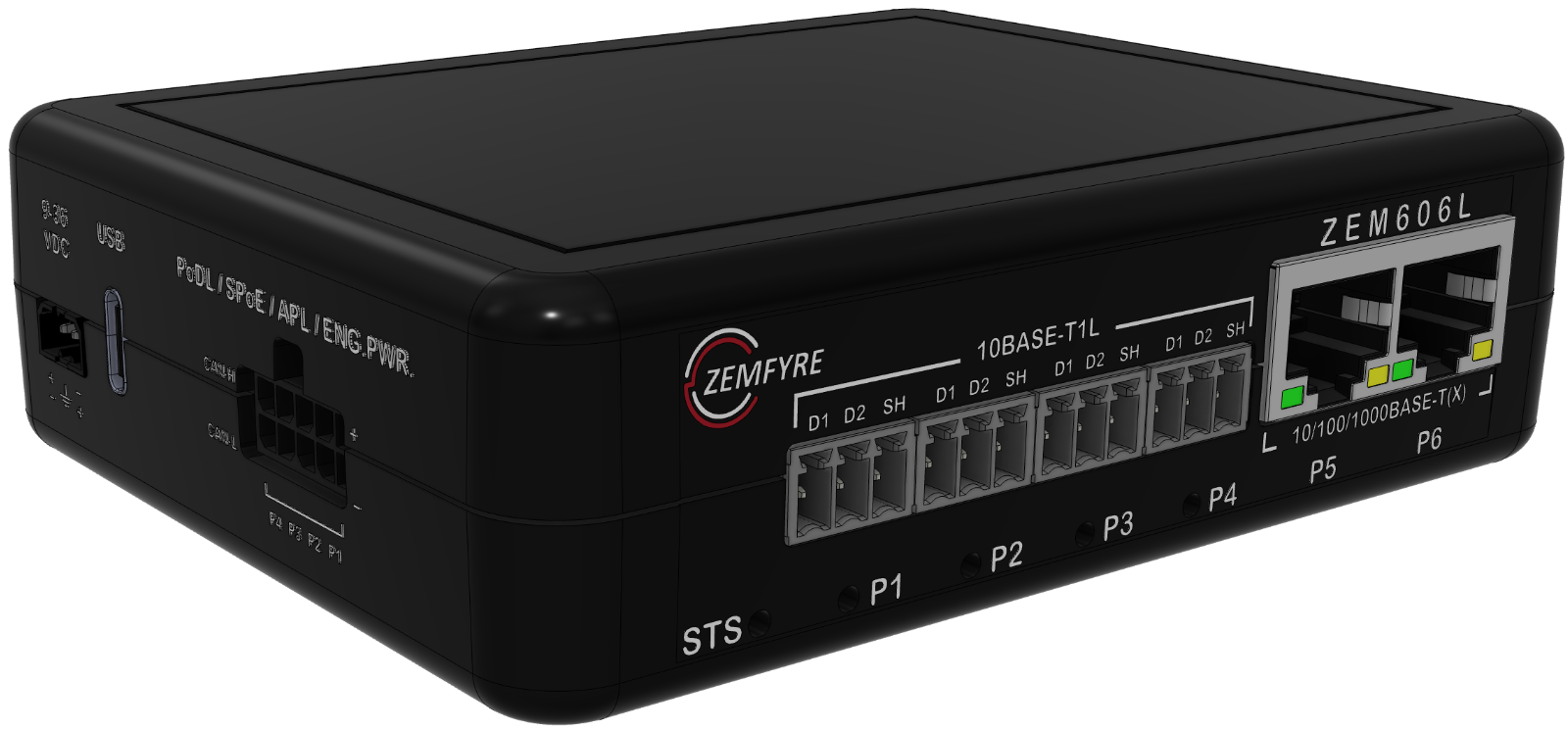

ZEM606LSecure Unmanaged SPE Switch
6-port DIN-rail secure unmanaged switch — 4 × 10BASE-T1L SPE (3.5mm terminal blocks) plus 2 × 10/100/1000BASE-T RJ45 uplinks, reaching 1,700m at 10Mb/s with optional PoDL/SPoE power on T1L ports.
Overview
ZEM606L - Secure Unmanaged SPE Switch
- ZEM606L by Zemfyre Inc. is a 6-ports DIN-rail Secure Unmanaged Switch with 4 ports of Single Pair Ethernet (SPE) 10BASE-T1L and 2 ports of 10/100/1000BASE-T(X).
- The switch provides secure 10Mb/s connectivity for up to 1,700m, optionally delivering power according to Power over Data Line (PoDL/SPoE) standard, APL or Engineered Power.
- Convenient for field termination industry standard 3.5mm terminal blocks for SPE ports easily wired with either screw terminals or push-in receptacle types.
- The patent pending Secure Unmanaged Switch (SUS) technology implemented in ZEM606L provides security, diagnostics, and configuration options.
- This technology enables IIoT devices secure Cloud connectivity that facilitates Industry 4.0 adoption.
- The switch comes with standard Media Redundancy/Resiliency DLR protocol support, while RSTP or MRP protocols can be implemented on customer request.
- The switch supports Cable and Link quality (BER/SNR) diagnostics allowing cable break or short detection and channel quality troubleshooting.
- Built-in Event Logging and Alarm system detects and records all significant events, malfunctions, and run-time errors. This information is used for diagnostics and troubleshooting.
Specifications
Technical specifications
Interface
P1–P4 Ports
4× 10BASE-T1L (3.5 mm terminal block, 24-16AWG)
P5–P6 Ports
2× 10/100/1000BASE-T(X) (RJ45 connector)
Standards
SPE
IEEE 802.3cg, 10BASE-T1L
Ethernet 10
IEEE 802.3i, 10BASE-T
Ethernet 100
IEEE 802.3u, 100BASE-TX
Ethernet 1000
IEEE 802.3ab
Distance / Speed
P1–P4 (SPE)
up to 1,700m @ 10 Mb/s
P5–P6 (RJ45)
up to 100m @ 10/100/1000 Mb/s
LEDs
P1–P4 Port LEDs
Green— Link/Activity
P5–P6 LEDs
Green— Link/Activity
Yellow— Speed
Green— Speed
Status (STS) LED
Red— Alarm
Green— Power on
Blue— Port security enabled
Security, Diagnostics & Configuration
Port Security (MAC)
MAC-based port security
Port Security (Port)
Port-based security
VLAN
IEEE 802.1Q VLAN support
Authentication
NFC authentication & configuration
Cryptography
TPM 2.0 support
Logging
Event logging and alarms
Diagnostics
Cable & link quality (BER/SNR) diagnostics
Configuration
Configuration / software upgrade via USB / NFC
Switch Characteristics
MAC Table Size
8k-entry forwarding table
Packet Buffer
512KB
Jumbo Packet Support
9KB
MIB Counters
93per port
QoS
IPv4 / IPv6 QoS support
Time-Sensitive Networking (TSN)
IEEE 802.1Qbv/Qbu/Qav/Qci/Qch; IEEE1588v2; 1-step and 2-step PTP
Redundancy and Resiliency
DLR, IEEE 802.1CB(FRER), HSR/PRP per IEC62439-3, MRP, RSTP
Internet Group Management
IGMPv2/v3
Multicast Listener Discovery
MLDv1/v2
Power
Power Input
9–36 VDC
Power Terminal
3-pin 2.5mm pitch plug-in spring-clamp terminal block
Power Consumption
<5.0W
Polarity
Insensitive
PoDL/SPoE Output
4-channel, IEEE 802.3cg/bu, Ethernet-APL, Engineered Power
Physical
Housing
Black ABS textured plastic
Cooling
Fanless, natural convection cooling
Protection Class
IP40
Dimensions
3.5 × 4.5 × 1.25in (W × H × D)
Weight
0.2kg
Mounting
Free standing, DIN-rail/wall mount or panel mounting
Environmental
Operating Temperature
-40 to +70°C
Humidity
5 to 95%RH non-condensing
