ZEM601L

Secure Unmanaged SPE Switch

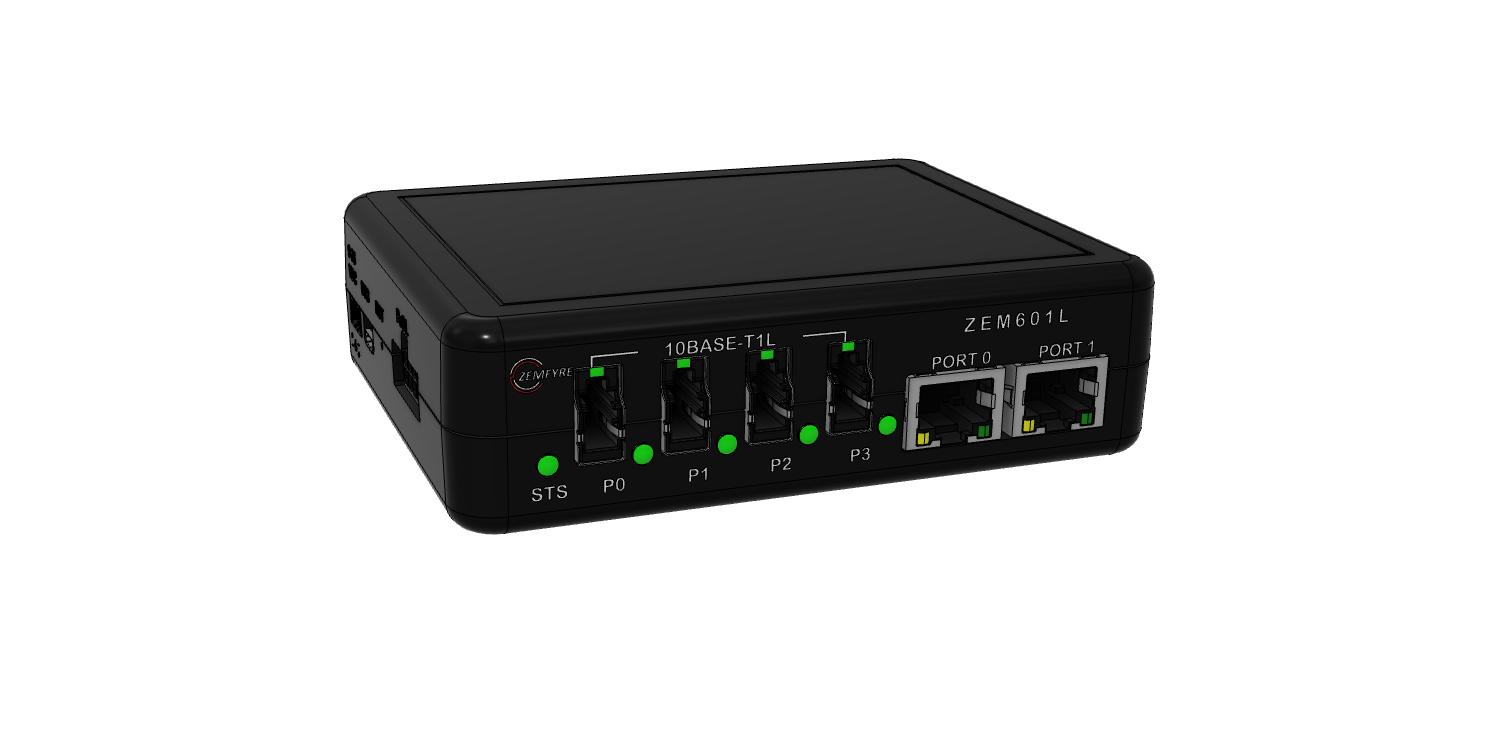

ZEM601L Secure Unmanaged Switch — front view

6-port DIN-rail secure unmanaged Single Pair Ethernet switch. 4× 10BASE-T1L SPE ports plus 2× 10/100BASE-TX RJ45 uplinks, up to 1,700 m reach with optional PoDL power delivery. Patent-pending Secure Unmanaged Switch (SUS) technology with NFC-authenticated configuration and TPM 2.0 support.

Overview

ZEM601L - Secure Unmanaged SPE Switch

  • ZEM601L by Zemfyre Inc. is a 6-ports DIN-rail Secure Unmanaged Switch with 4 ports of Single Pair Ethernet (SPE) 10BASE-T1L and 2 ports of 10/100BASE-TX.
  • The switch provides secure 10Mb/s connectivity for up to 1,700m, optionally delivering power according to Power over Data Line (PoDL) standard.
  • The patent pending Secure Unmanaged Switch (SUS) technology implemented in ZEM601L provides security, diagnostics, and configuration options.
  • This technology enables IIoT devices secure Cloud connectivity that facilitates Industry 4.0 adoption.
  • Media Redundancy/Resiliency RSTP or MRP protocols can be implemented on customer request.
  • The switch supports Cable and Link quality (BER/SNR) diagnostics allowing cable break or short detection and channel quality troubleshooting.
  • Built-in Event Logging and Alarm system detects and records all significant events, malfunctions, and run-time errors. This information is used for diagnostics and troubleshooting.
Dimensions

Mechanical Specifications

Width × Height × Depth

3.5 × 4.5 × 1.25"

89 × 114 × 32 mm

Weight

0.2 kg

0.44 lb

Mounting

DIN-rail or panel mounting

Enclosure

Black ABS textured plastic

Specifications

Technical specifications

Interface
P0–P3 Ports
4× 10BASE-T1L (IEC 63171-1 connector)
Port 0–1 Ports
2× 10/100BASE-T(X) (RJ45 connector)
Standards
SPE
IEEE 802.3cg, 10BASE-T1L
Ethernet 10
IEEE 802.3i, 10BASE-T
Ethernet 100
IEEE 802.3u, 100BASE-TX
Distance / Speed
P0–P3 (SPE)
up to 1,700m @ 10 Mb/s
Port 0–1 (RJ45)
up to 100m @ 10/100 Mb/s
LEDs
P0–P3 Port LEDs
Green— Link/Activity
Port 0–1 LEDs
Green— Link/Activity
Yellow— Speed
Status (STS) LED
Red— Alarm
Green— Power on
Blue— Port security enabled
Security, Diagnostics & Configuration
Port Security (MAC)
MAC-based port security
Port Security (Port)
Port-based security
VLAN
IEEE 802.1Q VLAN support
Authentication
NFC authentication & configuration
Cryptography
TPM 2.0 support
Logging
Event logging and alarms
Diagnostics
Cable & link quality (BER/SNR) diagnostics
Configuration
Configuration / software upgrade via USB / NFC
Switch Characteristics
MAC Table Size
1024-entry forwarding table
Packet Buffer
64KB
Jumbo Packet Support
2KB
MIB Counters
36per port
QoS
IPv4 / IPv6 QoS support
Power
Power Input
9–36 VDC, 1,600 VDC transformer isolated
Power Terminal
3-pin 2.5mm pitch plug-in spring-clamp terminal block
Power Consumption
<3.0W
Reverse Polarity Protection
Yes
Redundant Power Support
USB 2.0 power supplied
PoDL/SPoE Output
4-channel, IEEE 802.3cg Classes 10–14, Ethernet-APL v.1.0
Physical
Housing
Black ABS textured plastic
Cooling
Fanless, natural convection cooling
Protection Class
IP40
Dimensions
3.5 × 4.5 × 1.25in (W × H × D)
Weight
0.2kg
Mounting
DIN-rail or panel mounting
Environmental
Operating Temperature
-40 to +70°C
Humidity
5 to 95%RH non-condensing
