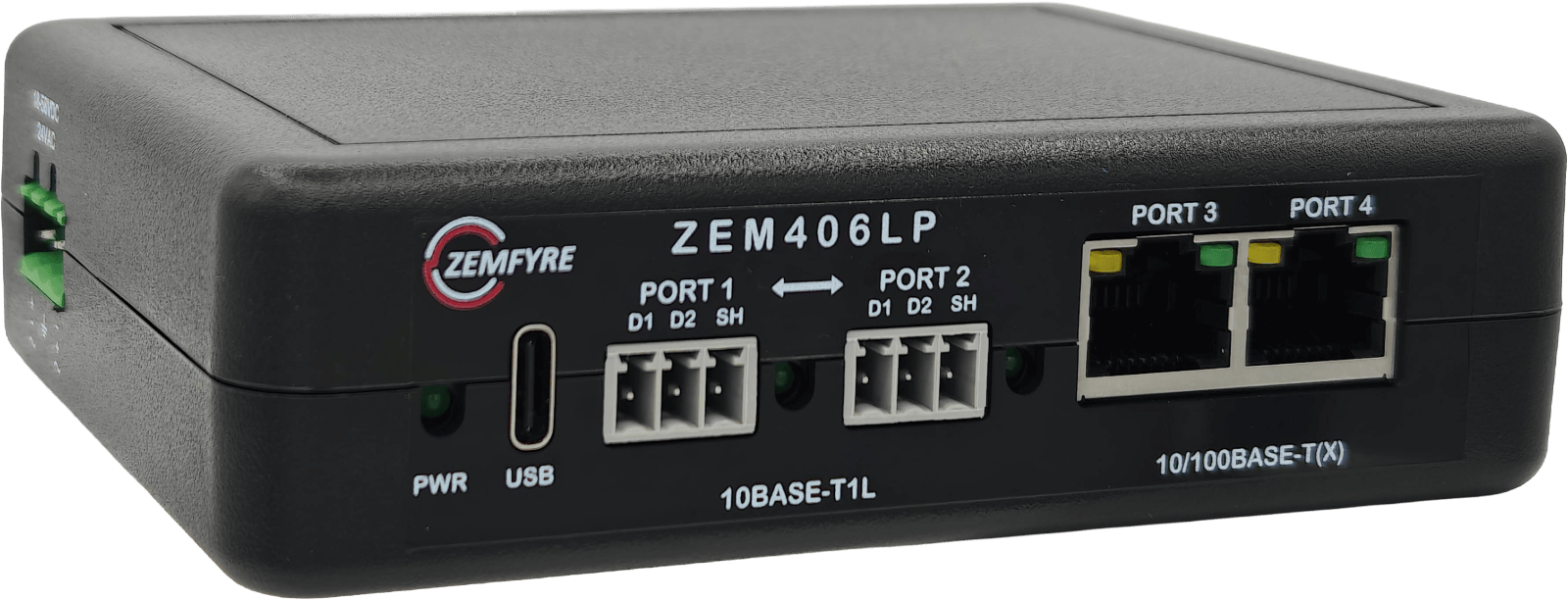

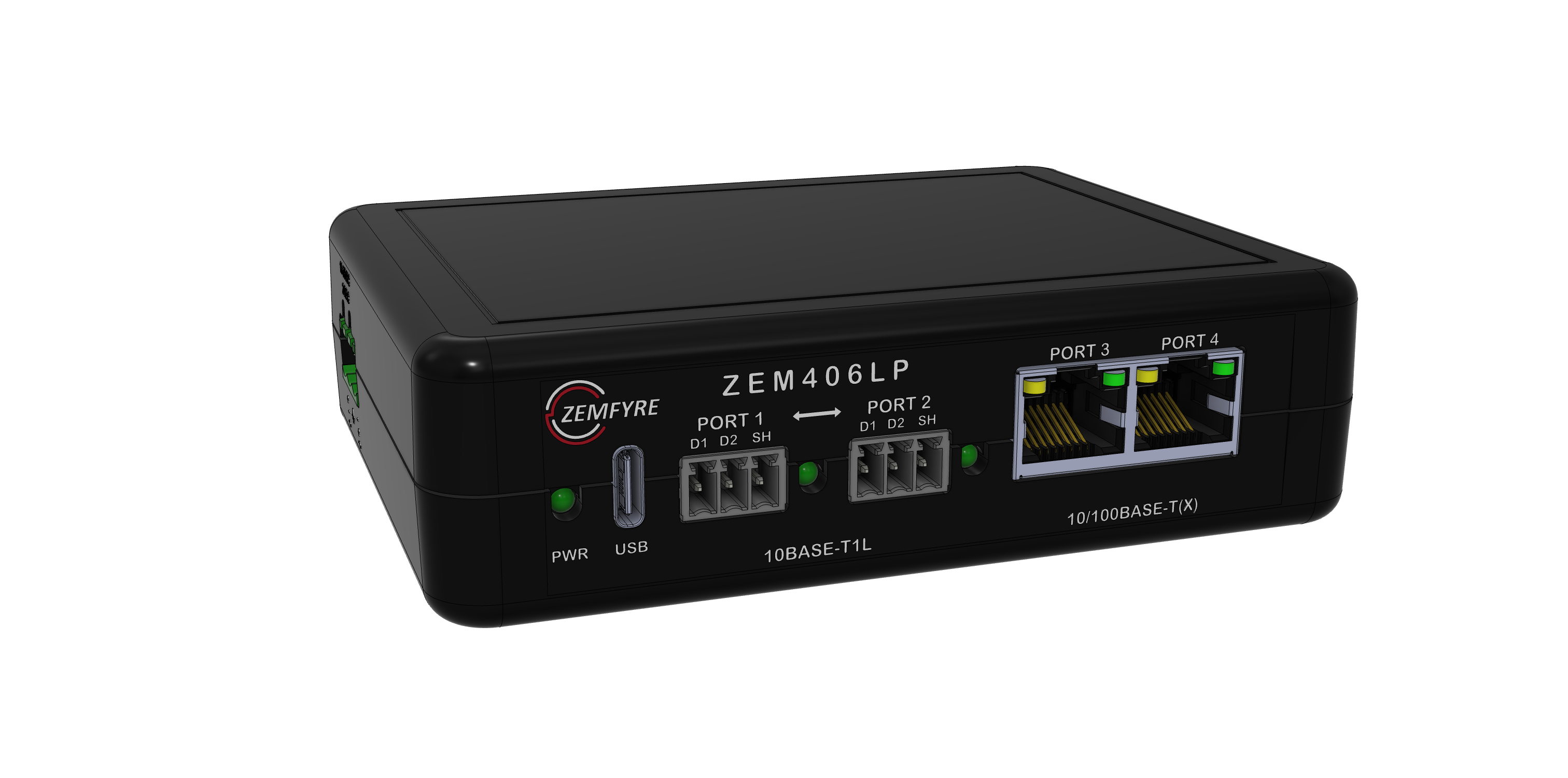

ZEM406LP
Daisy Chain SPE Switch
4-port DIN-rail daisy-chain SPE switch. 2× 10BASE-T1L SPE ports and 2× 10/100BASE-TX, with power forwarding up to 70 W between SPE ports. Built-in fail-safe relay preserves chain integrity on local power loss.
ZEM406LP Product BriefPDF · DownloadOverview
- ZEM406LP by Zemfyre Inc. is a 4-port DIN-rail unmanaged switch with 2 ports of Single Pair Ethernet (SPE) 10BASE-T1L and 2 ports of 10/100BASE-TX.
- The switch provides secure 10Mb/s connectivity for up to 1,700m and forwarding of up to 70W of power on the same pair of wires.
- ZEM406LP allows daisy-chaining data and power forwarding on SPE ports when working with ZEM601L switch. Off-the-shelf power source 18-58VDC or 24VAC is capable of powering of up to 40 devices in the chain without use of local power. This line or loop network topology greatly extends the reach for regular 10/100BASE-T(X) based devices not possible before.
- Convenient for field termination industry standard 3.5mm terminal blocks for SPE ports easily wired with either screw terminals or push-in receptacle types.
- ZEM406LP has a bypass relay closing the chain when using local power and the power is out. This way the rest of the network is still completely functional when one node in the chain is out.
- The switch supports configuration over USB interface for advanced features like broadcast storm protection, VLAN settings, ingress/egress limiting, port mirroring, security as well as Cable and Link quality (BER/SNR) diagnostics allowing cable break or short detection and channel quality troubleshooting.
Specifications
Technical specifications
Interface
PORT 1–2 Ports
10BASE-T1L, 3-pos. 3.5mm terminal block, 24-16AWG
PORT 3–4 Ports
10/100BASE-T(X), RJ45
Standards
SPE
IEEE 802.3cg, 10BASE-T1L
Ethernet 10
IEEE 802.3i, 10BASE-T
Ethernet 100
IEEE 802.3u, 100BASE-TX
Distance / Speed
PORT 1–2 (SPE)
up to 1,700m @ 10 Mb/s
PORT 3–4 (RJ45)
up to 100m @ 10/100 Mb/s
LEDs
PORT 1–2 LED
Green: Link/Activity
PORT 3–4 LED
Green: Link/Activity, Yellow: 100Mbps Speed
Power (PWR) LED
Solid Green: Power on · Blinking Green: Alarm, check the device status · No light: Power off
Configuration, Diagnostics & Upgrade
Port Security (MAC)
MAC Based port security
Port Security (Port)
Port based security
VLAN
IEEE 802.1Q VLAN support
Port Mirroring
Port mirroring
IGMP
IGMP snooping
Logging
Event Logging and Alarms
Diagnostics
Cable break/short detection and Link quality (BER/SNR) diagnostics
Configuration
Configuration/Software upgrade via USB
Switch Characteristics
MAC Table Size
1024-entry forwarding dynamic table and static table
Packet Buffer
64KB
Jumbo Packet Support
2KB
MIB Counters
34per port
QoS
IPv4/IPv6 QoS support
Power
External Power Input
18-58VDC or 24VAC+/-20%
Power Terminal
3-pin 5.08mm pitch terminal block
SPE Port Power
18-58VDC or 24VAC+/-20%
SPE Power Terminal
SPE PORT 1 or PORT 2, 3-pin 3.5mm pitch terminal block
Power Consumption
<2.0W
Polarity
Polarity-agnostic data and power connections
Physical
Housing
Black ABS Textured Plastic
Cooling
Fanless, natural convection cooling
Protection Class
IP40
Dimensions
3.5 × 4.5 × 1.25in (W × H × D)
Weight
0.2kg
Mounting
DIN-Rail, Wall or Panel Mounting
Environmental
Operating Temperature
-40 to +70°C
Humidity
5 to 95%RH non-condensing
