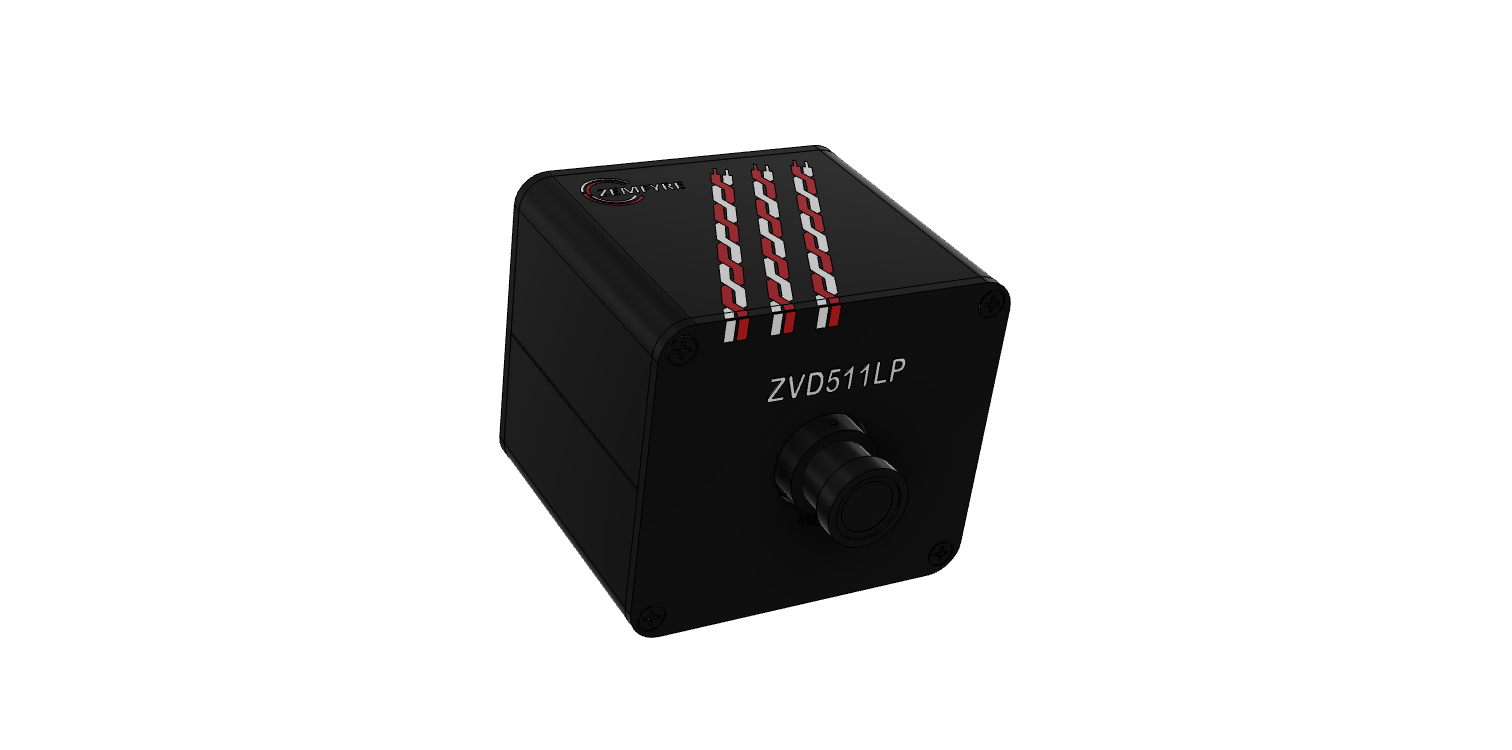

ZVD511LP
SPE PoDL Powered Camera
5-megapixel industrial SPE camera. Full-color CMOS sensor for video surveillance and monitoring over a single twisted pair. 10 Mb/s video stream up to 1,000 m, powered by PoDL Class 14.
Overview
ZVD511LP - SPE PoDL Powered Camera
- Zemfyre's ZVD511LP is a versatile Video Monitoring Device suitable for various video surveillance and monitoring applications, including factory automation, building automation, security, and transportation.
- The ZVD511LP utilizes Single Pair Ethernet for communication, allowing the camera to be positioned over 1,000 meters away from the host using just a single pair of wires. This technology also enables power delivery over the same wires, significantly simplifying deployment.
- The device is available with different CMOS sensor resolutions (3-5 Mpix) and focal length optics. Its standard 1/4" attachment allows for quick and easy setup.
- The use of H.264/H.265 compression significantly reduces bandwidth requirements compared to uncompressed video.
- Additional benefits include channel quality monitoring, optional end-to-end cybersecurity, and optional edge AI processing.
- When used in conjunction with a secure unmanaged switch from the ZEM6xx series, the ZVD511LP enables secure Cloud connectivity for IIoT devices, facilitating Industry 4.0 adoption.
Dimensions
Mechanical Specifications
Width × Height × Depth
2.2 × 2.4 × 3"
56 × 61 × 76 mm
Weight
0.2 kg
0.44 lb
Mounting
1/4" standard camera mount
Enclosure
Rugged aluminum enclosure
Specifications
Technical specifications
Interface
SPE Port
1 × 10BASE-T1L, IEC 63171-1
Standards
SPE
IEEE 802.3cg, 10BASE-T1L
Distance / Speed
10BASE-T1L
up to 1,000m @ 10 Mb/s
LEDs
Port LED
Green— Link/Activity
Video Streaming
Compression
H.265AI/H.265+ (compatible with H.265/H.264)
Streams
Dual stream
Main Stream
2880 × 1616 @ 25 fps
Sub-Stream
800 × 448 @ 25 fps
Frame Rate
1–30fps, variable
Bitrate
0.1–8Mb/s, variable
Container
AVI
Noise Reduction
2D / 3D
Snapshot
JPEG capture
Audio
Compression
G.711
Two-Way Talk
Bidirectional, audio/video synchronized
Input
1 ch, 2 Vp-p, 1 kΩ
Output
1 ch, 16 Ω, 30 mW
Network & Integration
Streaming
RTSP
Integration
ONVIF, SDK
Addressing
DHCP or static IP
Time Sync
NTP (local server)
File Transfer
FTP (local server)
Detection & Alarm
Motion Detection
Support
Alarm
IO alarm input/output
Edge Recording
Front-end storage / playback / download
Intelligent Analytics
Human Detection
Support
Face Detection
Support
Custom Analytics
Supported via edge AI
Remote Management
Interface
Configuration/streaming by any web browser
On-Screen Display
OSD support
Power
Power Input
SPoE Class 14 PD per IEEE802.3cg
Power Max
12W
Reverse Protection
Support
CMOS Sensor
Resolution
3–5 Mpix, orderable option
Physical
Housing
Rugged aluminum enclosure
Cooling
Fanless, natural convection cooling
Dimensions
2.2 × 2.4 × 3in (W × H × D), with lens and mount
Weight
0.2kg
Mounting
1/4" standard camera mount
Environmental
Operating Temperature
-10 to +60°C
Humidity
5 to 95%RH non-condensing
