ZUS801LP

SPE PoDL/SPoE Sensor

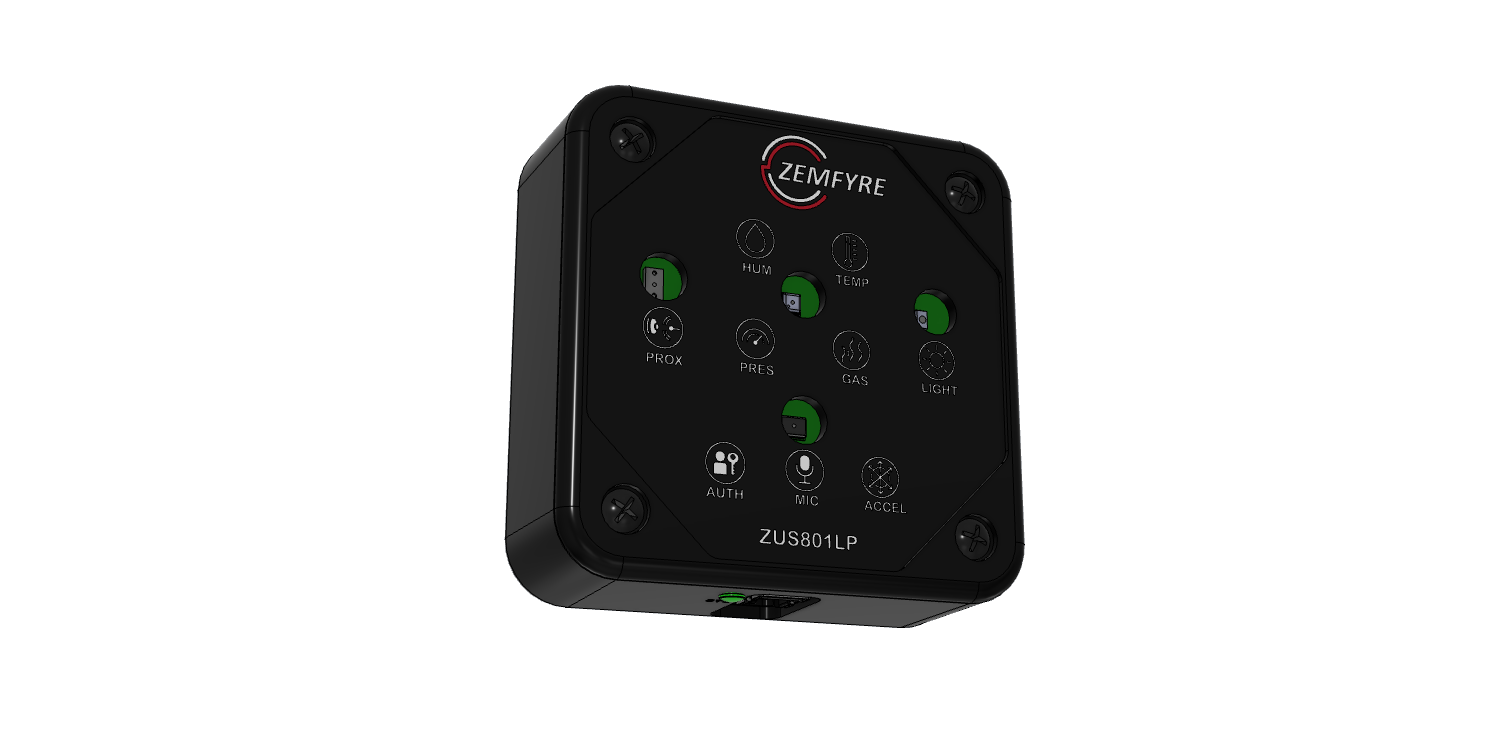

ZUS801LP SPE Environmental Sensor — front view

8-in-1 industrial environmental sensor over SPE. Measures air quality, temperature, pressure, humidity, light, sound, proximity, and acceleration. Powered by PoDL Class 13, MQTT/TLS protocol, up to 1,700 m reach.

ZUS801LP Product BriefPDF · Download
Overview
  • ZUS801LP by Zemfyre Inc. is a Universal Environmental Sensor simultaneously measuring 8 ambient parameters: ambient air quality, temperature, pressure and humidity; ambient light and sound; object proximity and sensor's acceleration.
  • The sensor data runs on Single Pair Ethernet (SPE) physical layer 10BASE-T1L while taking power on the same pair of wires according to Power over Data Line (PoDL) standard.
  • ZUS801LP provides secure 10Mb/s connectivity for up to 1,700m, supporting MQTT protocol.
  • Communication security is ensured by implementing a Secure Element (SE) based on Cryptographic Authentication Device.
  • The sensor also supports numerous diagnostic, calibration and configuration options, including AI-assisted model-based event recognition.
  • This technology is ideal fit for Smart Homes, Building Automation, Smart City, Security and Energy/Light saving applications.
Specifications

Technical specifications

Interface
SPE Port
1 × 10BASE-T1L (IEC 63171-1 connector)
Standards
SPE
IEEE 802.3cg, 10BASE-T1L
Distance / Speed
10BASE-T1L
up to 1,700m @ 10 Mb/s
Sensors
Air Quality
VOC / CO₂ equivalent
Temperature
Ambient air temperature
Pressure
Barometric pressure
Humidity
Relative humidity
Light
Ambient light level
Sound
Ambient sound level
Proximity
Object proximity detection
Acceleration
3-axis acceleration
Protocol
Data Protocol
MQTT (Publisher)
Security
TLS 1.2 and 1.3
Crypto
Secure Element (SE), crypto accelerator, secure key storage, RNG
Power
Power Input
PoDL/SPoE Class 13 (50–58 VDC) or Class 10/11 (20–30 VDC)
Standard
IEEE 802.3cg
LEDs
Port LED
Link/Activity
Status LED
Multicolor status indicator
Physical
Housing
Rugged ABS plastic
Dimensions
2.5 × 2.5 × 1.0in (W × H × D)
Weight
0.1kg
Mounting
1/4" standard camera screw attachment
Environmental
Operating Temperature
-40 to +70°C
Humidity
5 to 95%RH non-condensing
