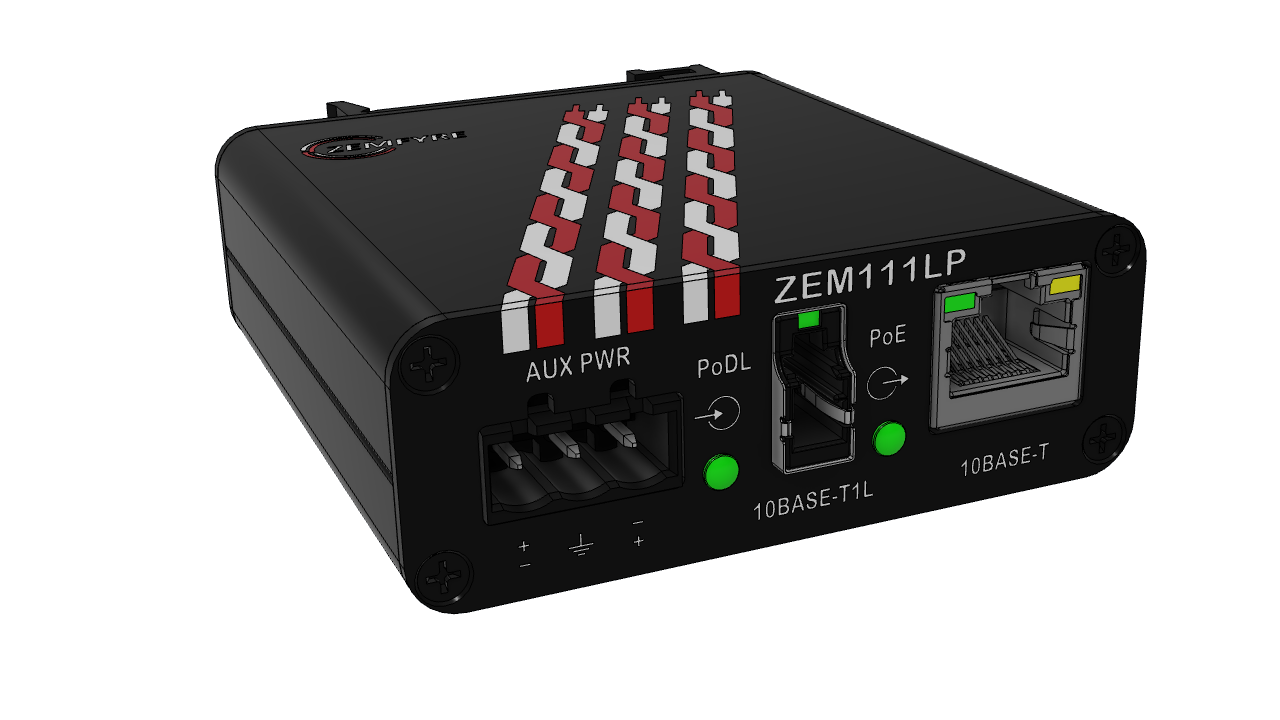

ZEM111LP
SPE Media Converter with PoDL/SPoE/PoE
SPE media converter with bidirectional PoDL/PoE power bridging. Converts PoDL Class 10–14 input to PoE 802.3af output for legacy cameras and sensors, or optionally sources PoDL Class 10–15 from PoE input.
ZEM111LP Product BriefPDF · DownloadOverview
- ZEM111LP by Zemfyre Inc. is a 2-port Media Converter with 1 port of Single Pair Ethernet (SPE) 10BASE-T1L and 1 port of 10BASE-T.
- It converts RJ45 based 10BASE-T interface to IEC 63171-1 based 10BASE-T1L and vice versa. It enables SPE connectivity that can extend existing Ethernet for up to 1,700m on 10BASE-T1L port.
- To facilitate a connection to traditional PoE cameras and sensors ZEM111LP converts input power, either over SPE port with PoDL/SPoE or from an external power supply, and generates PoE power output.
- The Media Converter is based on two Ethernet PHY devices connected back-to-back over RMII interface providing lowest possible latency, complete transparency for all types of Ethernet packets and MAC addressing.
- ZEM111LP in conjunction with a secure unmanaged switch ZEM601L enables IIoT devices secure Cloud connectivity that facilitates Industry 4.0 adoption.
- Port Link/Activity LED indication can assist with immediate system Link status and traffic detection on either of the ports.
- ZEM111LP options may include PoE power input with power conversion to PoDL/SPoE Class 10-15.
Specifications
Technical specifications
Interface
SPE Port
10BASE-T1L, IEC 63171-1
Ethernet Port
10BASE-T, RJ45
Standards
SPE
IEEE 802.3cg— 10BASE-T1L Single Pair Ethernet
Ethernet 10
IEEE 802.3i— 10BASE-T
PoE
IEEE 802.3af
Distance / Speed
10BASE-T1L
up to 1,000m @ 10 Mb/s
10BASE-T
up to 100m @ 10 Mb/s
LEDs
Port LEDs
Green: Link/Activity (at ports)
Power In LED
Green: PoDL/SPoE or auxiliary power in
Power Out LED
Green: PoE power out
Power
Power Input
Auxiliary 15–58 VDC, 2A or PoDL/SPoE PD Class 14 (50–58 VDC)
Auxiliary Power Input Terminal
3-pin 5.08mm pitch plug-in terminal block
Power Output
IEEE 802.3af PoE PSE
Power Consumption
<1.0W
Reverse Polarity Protection
Yes, on auxiliary power input
Physical
Housing
Rugged extruded aluminum enclosure
Cooling
Fanless, natural convection cooling
Protection Class
IP40
Dimensions
3.2 × 2.8 × 1.0in (W × H × D) (with DIN clip attachment)
Weight
0.2kg
Mounting
DIN-Rail or Panel Mounting
Environmental
Operating Temperature
-40 to +70°C
Humidity
5 to 95%RH non-condensing
